Detail produk:
|
| Tipe: | Bit Inti Berlian Diresapi | Ukuran: | TT48 LTK48 |
|---|---|---|---|
| Tinggi Mahkota: | 12mm | Matriks: | F1 ~ 14 |
| Aplikasi: | Drilling Rock | Warna: | Hitam |
| Cahaya Tinggi: | Bit inti berlian 12mm yang diresapi,bit berlian yang diresapi 12mm,bit inti berlian yang diresapi sinocoredrill |
||

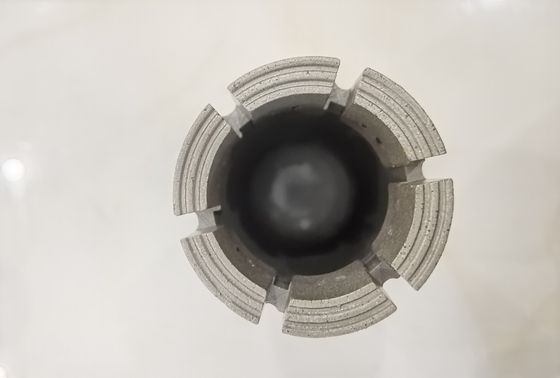

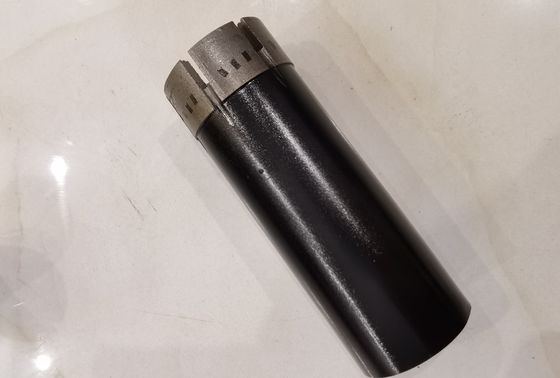

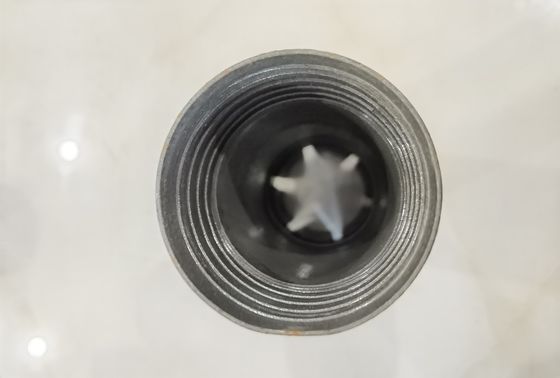

TT48 Dinding Tipis Tabung Ganda Diresapi Inti Berlian Bit 12mm
Keuntungan:
spesifikasi
| Barang | Bit berlian | REMING SHELL | |||||
| Kabel seri “Q” | ukuran | Set bit OD | ID set bit | ||||
| mm | inci | mm | inci | mm | inci | ||
| AQ | 47.6 | 1.88 | 26.97 | 1.06 | 48 | 1.89 | |
| BQ | 59.5 | 2.35 | 36.4 | 1.43 | 59.9 | 2.36 | |
| NQ | 75.3 | 2.97 | 47.6 | 1.88 | 75.7 | 2.98 | |
| markas besar | 95.58 | 3.77 | 63.5 | 2.5 | 96 | 3.78 | |
| PQ | 122 | 4.8 | 84,96 | 3.35 | 122.6 | 4.83 | |
| Seri T2 Metrik Swedia | 36 | 36 | 1.417 | 22 | 0,866 | 36.3 | 1.429 |
| 46 | 46 | 1.811 | 32 | 1.26 | 46.3 | 1.823 | |
| 56 | 56 | 2.205 | 42 | 1.654 | 56.3 | 2.217 | |
| 66 | 66 | 2.598 | 52 | 2.047 | 66.3 | 2.61 | |
| 76 | 76 | 2.992 | 62 | 2.441 | 76.3 | 3,004 | |
| 86 | 86 | 3.386 | 72 | 2.835 | 86.3 | 3.398 | |
| 101 | 101 | 3.976 | 84 | 3.307 | 101.3 | 3.988 | |
| Seri T Swedia | TAW | 47.6 | 1,875 | 23.2 | 1.31 | 48 | 1.89 |
| TBW | 59.5 | 2.345 | 44.9 | 1.77 | 59.9 | 2.36 | |
| TNW | 75.3 | 2.965 | 60.5 | 2.38 | 75.7 | 2.98 |
|
|
Ukuran yang Tersedia
|
|
|
|
|||
|
Seri kabel
|
Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL -66, WL-76
|
|
|
|||
|
Seri T2 / T
|
T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
|
|
|
|||
|
seri TT
|
TT 46, TT 56
|
|
|
|||
|
seri T6
|
T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
|
|
|
|||
|
Seri T6S
|
T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
|
|
|
|||
|
seri B
|
B46, B56, B66, B76, B86, B101, B116, B131, B146
|
|
|
|||
|
Seri MLC
|
NMLC, HMLC, 3C, 4C, 6C, 8C
|
|
|
|||
|
seri LTK
|
LTK48, LTK60
|
|
|
|||
|
seri WF
|
HWF, PWF, SWF, UWF, ZWF
|
|
|
|||
|
seri WT
|
RWT, EWT, AWT, BWT, NWT, HWT (Tabung Tunggal, Tabung Ganda)
|
|
|
|||
|
Seri WG
|
EWG, AWG, BWG, NWG, HWG (Tabung Tunggal, Tabung Ganda)
|
|
|
|||
|
seri WM
|
EWM, AWM, BWM, NWM, HWM
|
|
|
|||
|
Ukuran lain
|
AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H, SK6L-146
|
|
|
|||
|
standar Cina
|
56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
|
|
|
|||
|
Standar Rusia
|
59, 76, 93, 112, 132, 152 mm
|
|
|
|||
|
Ukuran khusus juga dapat dibuat sesuai permintaan.
|
||||||
